    Heat - Endurance Environmental Testing Chamber , Programmable Controlled Humidity Chamber

    Ask Lasest Price
    Brand Name : SANWOOD
    Model Number : SMC-Series
    Certification : CE AND ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 set per month
    Delivery Time : 4-5 weeks
    • Product Details
    • Company Profile

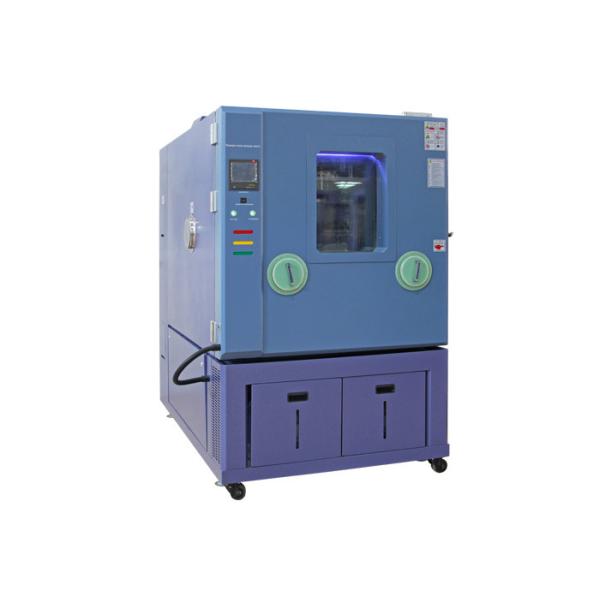

    Heat - Endurance Environmental Testing Chamber , Programmable Controlled Humidity Chamber


    Environmental Testing Equipment , Programmable Temperature And Humidity Chamber


    Product feature


    1. LCD touch screen, easy program.


    2. Inner material: SUS#304


    3. Tecumseh Compressor

    The Temperature Humidity Chamberis designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.


    ModelSMC-80-CCSMC-150-CCSMC-225-CCSMC-408-CCSMC-800-CCSMC-1000-CCSMC-1500-CC
    Temperaturetemperature range-70℃~180℃(A:0℃~180℃;B:-20℃~180℃;C:-40℃~180℃;D:-70℃~180℃)
    temperature fluctuation±0.5℃
    cooling rate180.0℃~-70.0℃ Within about 100 minutes1.0~3.0℃/min
    heating rate-70.0℃~180.0℃ Within about 60 minutes 3.0~5.0℃/min
    temperature uniformity±1.5℃ (-40.0℃~100.0℃)
    ±2.0℃ (100.1℃~180.0℃or-40.0℃~-70.0℃)
    Humidityhumidity range10.0%RH~98.0%RH(60℃ above corresponds to 11%RH)
    humidity fluctuation±1.0% RH
    humidity uniformity±2.0%RH
    MaterialInternal materialSUS304 stainless steel(1.2mm)
    External materialcold-rolled plate(1.2mm),powder coating
    heat insulationpolyurethane foam(100mm)+glass wool(10mm)
    fanCentrifugal fan(Impeller Fan)
    refrigeration compressorhermetic compressor(Tecumseh)
    cooling wayair cooling or water cooling
    refrigerantR404A,R23,R508
    evaporatorfinned-tube exchanger
    heaternickel chrome strip heater
    humidifierSteam Humidifier
    SizeInterior size(mm)
    W*H*D

    400*500

    *400

    500*600

    *500

    500*750

    *600

    800*850

    *600

    1000*1000

    *800

    1000*1000

    *1000

    1200*1000

    *1250

    Outer size(mm)
    W*H*D

    700*1630

    *1180

    700*1670

    *1275

    700*1880

    *1290

    1000*1950

    *1400

    1200*2050

    *1590

    1200*2050

    *1780

    1400*2050

    *2030

    volume(L)80L150L225L408L800L1000L1500L
    weight(kg)280380450620680840955
    Working Temperature+5 ~ 35℃
    Power supply220V AC 50/60Hz 22A220V AC 50/60Hz 31A220V AC 50/60Hz 33A380V AC 50/60Hz 17A380V AC 50/60Hz 25A380V AC 50/60Hz 27A380V AC 50/60Hz 50A
    ControllerStandard: South Korea TEMI-1500
    Optional: South Korea TEMI-2500,South Korea TEMI-2700

    Product Catalog:

    Temperature and Humidity Test Chamber .pdf
