    Constant Temperature Humidity Test Chamber With Programmable Controller

    Ask Lasest Price
    Brand Name : Sanwood
    Model Number : SMC-22-CC
    Certification : CE AND ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 60 Set per month
    Delivery Time : 4-5 weeks
    • Product Details
    • Company Profile

    Constant Temperature Humidity Test Chamber With Programmable Controller

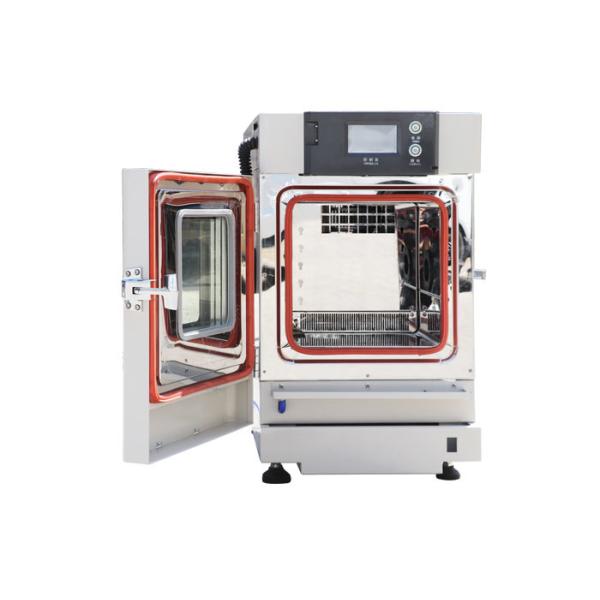

    Sanwood Small Constant Temperature Humidity Test Chamber

    Programmable Controller Large Window Low Noise for Lab


    Bench-Top Temperature (& Humidity) Chamber Product Introduction:

    The Bench-top temperature and humidity test chamber is widely used to do warm and humid heat tests for electronic and electrical products, materials, parts, equipment, etc., alternating heat test and constant temperature test, etc. Also could do high and low temperature routine tests, low temperature storage, in order to evaluate the performance of the sample under given environmental conditions.



    Equipment performance


    NameBenchtop Temperature Humidity Test Chamber
    ModelSMC-22-CD
    Inner dimension300x300x250mm ( W x H x D )
    Inner volume22.5L
    Outer dimension480x835x990mm ( W x H x D )
    Temperature Range-40℃~150℃
    Humidity Range20% to 98% RH
    Heating Rate3.0℃~5.0℃/min
    Cooling rate

    0.7℃~1.5℃/min from 25℃~ -40℃;

    1.0℃~ 2.0℃/min from 150℃ ~ 25℃;

    Temperature deviation±1℃
    Humidity deviation

    ±2%



    Mechanical structure design


    1-1. Internal materialCold resistance and heat resistance1.2mm stainless steel (SUS #304) plate fully welded
    1-2. External material1.5mm A3 steel plate galvanized and paint
    1-2. Main structure designThe Sheet metal area, Circuit area, Refrigeration zone, three parts.
    1-3. Heat/Cold storage materialAluminum alloy have large capacity to storage heat and cold energy
    1-4. Observation windowMulti - layer insulating glass observation window with energy-saving LED lighting source
    1-5.Sample rack bearing capacityNo more than 20 kg/ each layer
    1-6. Sample rack moving modeThe sample rack is movable.
    1-7.Sample Rack2 stainless steel self
    1-8.Insulation layerHeat insulation layer flame retardant PU+Heat insulation glass wool(100mm Insulation layer)
    1-9. Equipment movement and fixation

    Heavy duty casters with adjustable leveling feet


    1-10.


    Taiwan original rotatable handle

    Japanese original imports #304 SUS hinge , which can prevent the box door shaking.

    Energy-saving 18W LED built into the window for easy viewing without glare.


    Product features:

    1. tempered glass with LED lighting in the observation window

    2. Touch screen for the programmable controller.

    3. Inner chamber - stainless steel, heat resistant silicone seal

    4. curved inner wall, easy to clean; Up to down air circulation system;

    5. accurate control for temeprature and humidity, electric temperature sensor as optional

    6. Compact design, best space use and combination selection
    7. Colored LCD touch screen
    8. Mobile app/computer remote control
    9. Noise as low as 50dB

    Benchtop Environmental Test Chamber Damp Heat Test Chamber Temperature Humidity test chamber for Laboratories
