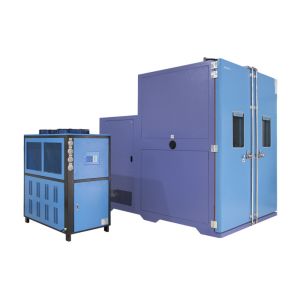

    Panel Assembled Temperature Humidity Walk In Chamber Easy Access To Components


    Panel assembled Temperature Humidity Walk in Chamber

    Our Walk-in Chamber use urethane-foam panels in a stainless steel or galvanized interior skin. This Walk-in Chamber is same construction used for walk-in coolers in restaurants, but of a higher quality.


    Applications

    Walk in test Chamber are used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.


    Features

    Walk-in, Drive-in Type

    Stainless steel interior (or galvanized for savings)

    Painted galvanized steel exterior for long life

    MAP service doors are hinged (no tools or lifting)

    Easy access to components

    Reliable steam generator system for humidity applications

    Sheathed electric heaters for safety and reliability

    Adjustable vanes in supply grille allow directing of airflow as needed


    Standards Implemented and met

    GB-2423. 1-89(IEC68-2-1) Test A: Low Temperature Test

    GB-2423. 2-89(IEC68-2-2) Test B: High Temperature Test

    GJB360. 8-87(MIL-STD.202F) High Temperature Operating Life Test

    GBJl50. 3(MIL-STD-810D) High Temperature Test

    GJBl50. 4(MIL-STD-810D) Low Temperature Test

    GB2423. 3-93(IEC68-2-3) Test Ca: method for steady-state damp heat test

    GB2423. 4-93(IEC68-2—30) Test Db: Damp Heat Alternative Test

    GJBl50. 9-93(MIL-STD-810D) Damp Heat Test


    Specifications


    ModelSMC-080-CC-WTSMC-120-CC-WTSMC-160-CC-WTSMC-250-CC-WTSMC-340-CC-WTSMC-400-CC-WT
    TemperatureTemperature control range-65℃~80℃(+15℃)(A:0℃~80℃;B:-20℃~80℃;C:-40℃~80℃;D:-65℃~80℃)
    Temperature fluctuation±0.5℃
    Cooling rate80.0℃~-65.0℃ Within 110 mins 1.0~2.0℃/min
    Heating rate-65.0℃~80.0℃ Within 70 mins 2.0~5.0℃/min
    Temperature uniformity±2.0℃ (-40.0℃~80.0℃)
    ±2.5℃ (-40.0℃~-65.0℃)
    HumidityHumidity control range20.0%RH~95.0%RH
    Humidity fluctuation±1.5% RH
    Humidity uniformity±3.0%RH
    Material /Internal materialStainless steel(SUS304)
    componentsExternal materialCold rolled steel sheet / powder spraying
    Heat insulating material100mm thickness polyurethane plate+10mm thickness mineral wool
    FanCentrifugal blower
    CompressorSemi-closed Germany Bock, Germany Bitzer
    CondenserWater-cooled
    RefrigerantR404A,R23,R508
    EvaporatorFin - and - Tube Heat Exchanger
    HeaterNickel chromium alloy heating wire
    HumidifierSteam humidifier
    SizeInterior size(mm)1970*2100*19703020*2100*19704070*2100*19703020*2100*40704070*2100*40705120*2100*4070
    W*H*D
    Outer size(mm)2170*2350*35003220*2350*35004270*2350*35004650*2350*42705720*2350*42705320*2350*6150
    W*H*D
    Volume(m³)8.0m³12.0m³16.0m³25.0m³34.0m³40.0m³
    Operating ambient temperature+5 ~ 35℃
    Power supply380V AC 50/60Hz
    ControllerStandard: South Korea TEMI-1500 Optional: South Korea TEMI-2500,South Korea TEMI-2700
